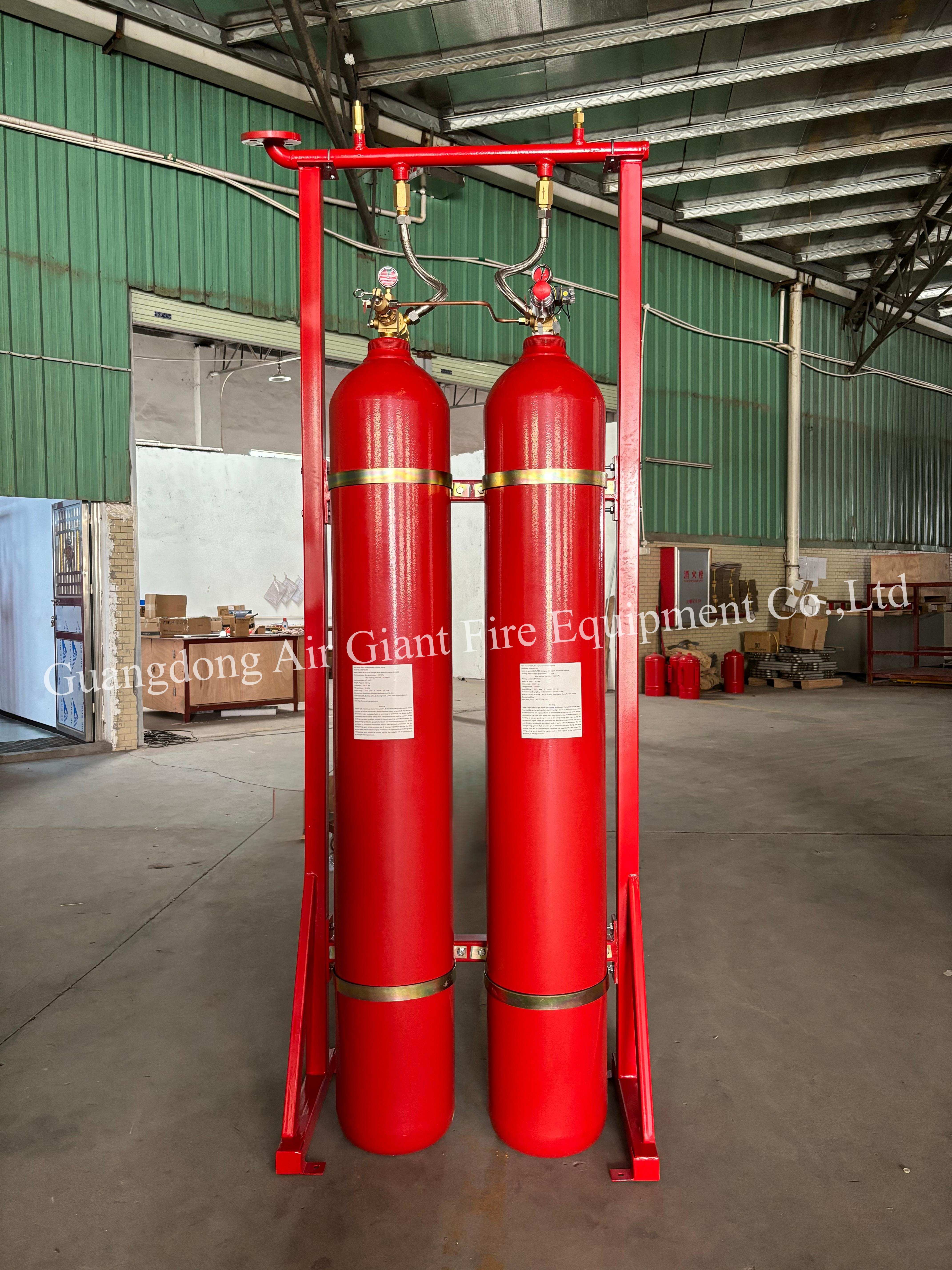

Inergen IG55 Fire Suppression System For Rapid Response
Description:
IG-55 is a unique gas blend, containing equal parts of two natural components: 50% argon and 50% nitrogen. This combination of gases offers numerous benefits and uses in various industries.
Since its components occur naturally in the environment, IG-55 does not contribute to global warming and is also environmentally friendly as it does not harm the ozone layer. Additionally, it has a similar density to air, making it easy to handle and use.
Clean and Versatile
Both argon and nitrogen are clean, non-corrosive, colorless, and tasteless gases, making them suitable for a wide range of applications. They are also compatible with various materials such as nickel, steel, stainless steel, copper, bronze, and tin, making them highly versatile in adapting to different actuation systems.
Storage and Pressure
IG-55 is typically stored in high-pressure cylinders, similar to other compressed gases. The size of the storage space required depends on the gas's pressure and capacity. Our IG-55 system is designed to operate at a pressure of 30MPa, allowing for efficient use of space and cost savings.
Technical parameters of IG55 fire suppression system
|
Working temperature (℃)
|
0℃～+50℃
|
|
Working pressure
|
Storage pressure
|
20.0MPa
|
30.0MPa
|
|
Max. working pressure (+50℃)
|
23.2MPa
|
36.6MPa
|
|
Min. working pressure (-20℃)
|
18MPa
|
27MPa
|
|
Container volume (L)
|
80L
|
140L
|
|
Filling weight (kg, @200 bar)
|
22.32kg
|
39.06kg
|
|
Filling weight (kg, @300 bar)
|
33.48 kg
|
58.59kg
|
|
System operating voltage
|
220V AC,24V DC
|
|
System start mode
|
Electrical automatic, electrical manual, mechanical emergency start
|
|
Design concentration
|
Class A dangerous material surface fire
|
40.3%
|
|
Class B
|
47.6%
|
|
The design concentration of the protective zone with people working
|
40.3%～43%
|
Components:
|
1
|
Storage Cylinders
|
5
|
Smoke Detectors, Heat Detectors
|
9
|
Manual Release Station
|
|
2
|
Release Device
|
6
|
Control
|
10
|
Backup Power Supply
|
|
3
|
Piping Network
|
7
|
Audible and Visual Alarms
|
11
|
Signage and Instructions
|
|
4
|
Nozzles
|
8
|
Pressure Switches and Gauges
|
12
|
Ventilation System(selection)
|
Features:
** Safe and Environmentally Friendly Fire Suppression Solution
IG55 fire suppression system is electrically non-conductive, making it suitable for applications in crowded spaces where electrical hazards are a concern. In addition, it is chemically inert, meaning it will not react with any substances and cause harm.
Furthermore, our fire suppression system is colourless, odourless, and flavourless, ensuring that it will not affect the taste or smell of any products in the protected area. And with no residue left behind after discharge, there is no need for clean-up, making it convenient and hassle-free.
** But the benefits don't end there. Our product also has no Ozone Depletion Potential (ODP) and does not contribute to the greenhouse effect or global warming. It produces no decomposition products and does not create fog or reduce visibility after discharge. Plus, it is non-corrosive and non-toxic, ensuring the safety of people and the environment.
In addition, our fire suppression system is stored as a gas, making it easy to store and transport. And with excellent post-discharge visibility and a very low refill cost, it is a cost-effective solution that is easily obtainable anywhere in the world.
Applications:
Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.
The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement pro duction process of pulverized coal, and the ship's engine room, cargo hold, etc.
Packing and Shipping:
We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
